Efficient representation for large sparse networks

An adjacency matrix is a convenient way to represent a network. A challenge of handling large networks is that the adjacency matrix can be too large to fit in memrory. For example, a network with \(10^5\) nodes requires a \(10^5 \times 10^5\) matrix, totaling \(10\) billion entries! A good news is that we do not need to hold all these entries in memory, if we know the network is sparse.

Many networks in real-world are sparse, meaning most nodes connect to only a few others. The result is that the adjacency matrix often contains many zeros. This is where we can save significant memory by storing only the non-zero entries.

Compressed Sparse Row (CSR) is an efficient way to store sparse networks by treating the adjacency matrix like a scatter plot. Instead of storing all entries, CSR only keeps track of the “coordinates” (row and column indices) of non-zero entries, along with their values.

Optional Exercise

For those who are interested in the details of CSR format, please do the following:

• 📝 Pen and paper exercise here

• 💻 (Advanced) Coding exercise in the Appendix.

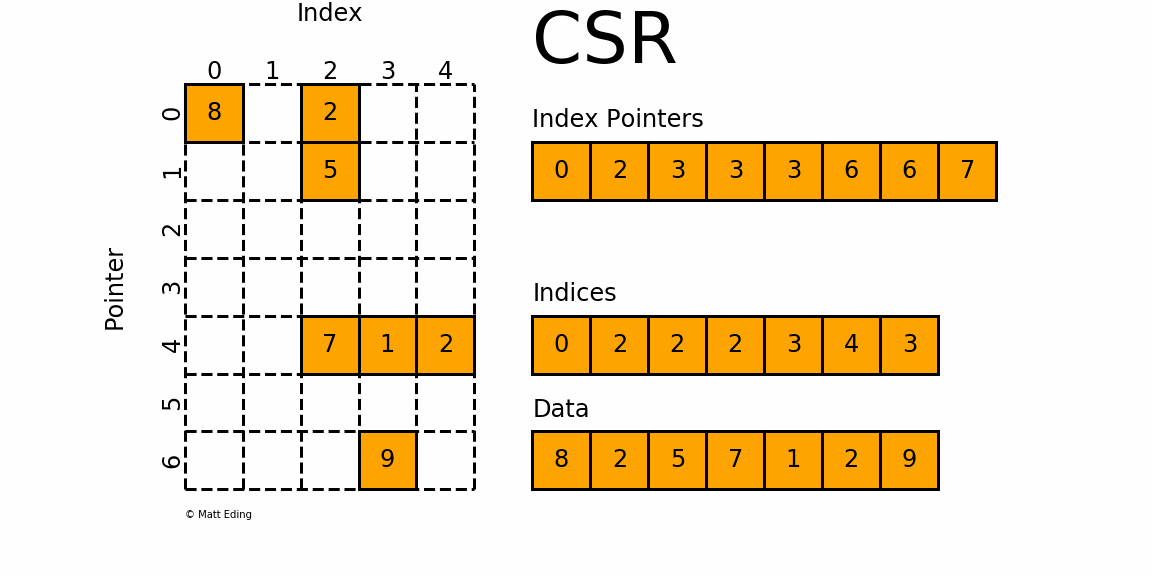

Fig. 9 Compressed Sparse Row (CSR) matrix. Source: Medium: Sparse GEMM and Tensor Core’s Structured Sparsity

The CSR format is implemented in the scipy library. It is straightforward to convert the CSR matrix from the dense adjacency matrix.

from scipy.sparse import csr_matrix

A = [[0, 2, 0, 1],
     [2, 0, 2, 1],
     [0, 2, 0, 1],
     [1, 1, 1, 0]]

A_csr = csr_matrix(A)
A_csr

<4x4 sparse matrix of type '<class 'numpy.int64'>'
	with 10 stored elements in Compressed Sparse Row format>

If you have an edge list, you can directly generate the CSR matrix without creating the dense matrix first.

from scipy.sparse import csr_matrix

edges = [(0,1), (0, 1), (0, 3), (1, 2), (1, 2), (1, 3), (2, 3)]

src = [edge[0] for edge in edges]
trg = [edge[1] for edge in edges]
values = [1 for _ in edges]
A_csr = csr_matrix((values, (src, trg)), shape=(4, 4))
A_csr

<4x4 sparse matrix of type '<class 'numpy.int64'>'
	with 5 stored elements in Compressed Sparse Row format>

where src, trg, and values are lists of the source nodes, target nodes, and edge weights, respectively.
