This module introduces agentic AI systems and the ReAct pattern.
You’ll learn:

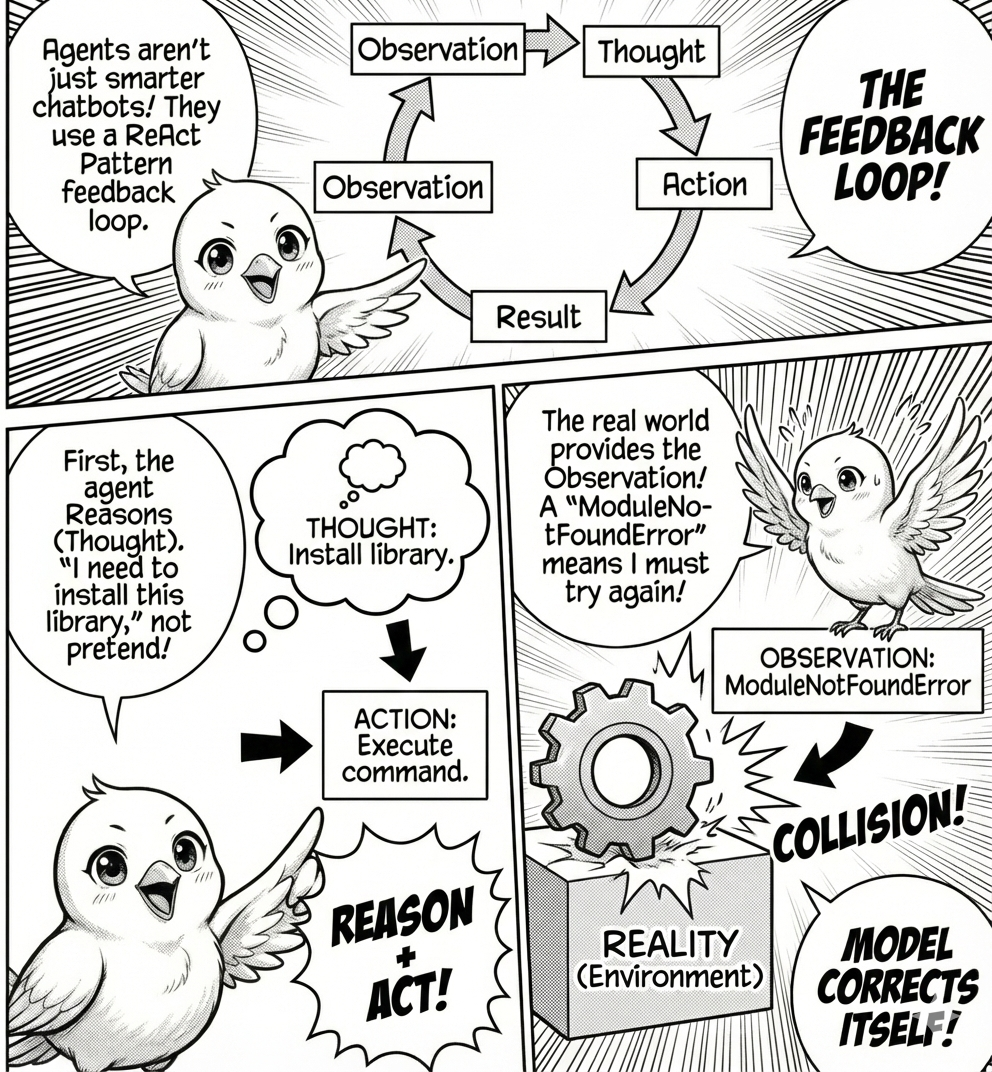

What makes an agent different from a chatbot? A chatbot generates text and stops. An agent generates text, parses it for actionable commands, executes those commands, observes the results, and feeds those results back into the next prompt. The intelligence does not come from the model but from the feedback loop.
This is the ReAct Pattern, short for Reason + Act. A chatbot is a pure function: \text{Output} = \text{Model}(\text{Input}). An agent is a state machine:
while not task_complete:
observation = get_environment_state()
thought = model(observation)
action = parse_action(thought)
result = execute(action)
observation = result # Feedback loopThe critical insight is the feedback loop. If the agent tries to import a missing library and receives a ModuleNotFoundError, the next iteration’s thought will be “I need to install this library.” It corrects itself not through introspection, but through collision with reality. The ReAct framework interleaves reasoning and action in three steps: the model reasons about the current state (Thought), outputs a specific command to interact with the environment (Action), and receives the result (Observation). This cycle repeats until the task is solved.
langgraphLet’s build an agent that can explore and analyze a real dataset. We’ll use LangGraph, a framework from LangChain that models agents as state machines. Unlike simple loops, LangGraph lets you define explicit control flow: decision nodes, parallel execution, conditional branching, and state persistence. Production agents need more than iteration. They need structured state management, error recovery, and observable transitions.
Install LangGraph and LangChain first:
pip install langgraph langchain langchain-ollamaNow let’s build an agent that can explore and analyze a real dataset. We’ll use the Fish Market dataset from Hugging Face, a collection of measurements from different fish species. The agent will read this data, run queries, and answer questions about it.
import pandas as pd
# Load the Fish dataset
df = pd.read_csv("hf://datasets/scikit-learn/Fish/Fish.csv")
df.head()| Species | Weight | Length1 | Length2 | Length3 | Height | Width | |
|---|---|---|---|---|---|---|---|
| 0 | Bream | 242.0 | 23.2 | 25.4 | 30.0 | 11.5200 | 4.0200 |
| 1 | Bream | 290.0 | 24.0 | 26.3 | 31.2 | 12.4800 | 4.3056 |
| 2 | Bream | 340.0 | 23.9 | 26.5 | 31.1 | 12.3778 | 4.6961 |
| 3 | Bream | 363.0 | 26.3 | 29.0 | 33.5 | 12.7300 | 4.4555 |
| 4 | Bream | 430.0 | 26.5 | 29.0 | 34.0 | 12.4440 | 5.1340 |
Now we’ll create tools that let the agent query this data. In LangGraph, tools are standard Python functions decorated with @tool. The function signature and docstring tell the LLM everything it needs.
import io
from langchain_core.tools import tool
from pandasql import sqldf
@tool
def inspect_data() -> str:
"""Get a concise summary of the dataset's structure, including column names, non-null values, and data types."""
buffer = io.StringIO()
df.info(buf=buffer)
return buffer.getvalue()The structure is minimal because LangGraph infers everything from the function definition. The function name becomes the tool name, the docstring becomes the description, and type hints define the schema. This particular tool takes no inputs and returns the dataset schema so the agent can discover column names and types before writing queries.
Let’s add three more tools to give the agent more analytical capabilities:
@tool
def query_data(sql_query: str) -> str:
"""Query the fish dataset using SQL. The table is called 'df'. Use inspect_data first to see available columns. Use find_correlations to find correlations between columns.
Args:
sql_query: SQL query to execute (use 'df' as table name)
"""
result = sqldf(sql_query, globals())
return result.to_string()
@tool
def find_correlations(columns: list[str]) -> str:
"""Calculate the correlation matrix for a list of numeric columns in the fish dataset.
Args:
columns: A list of column names to calculate correlations for.
"""
numeric_df = df[columns].select_dtypes(include=['number'])
corr_matrix = numeric_df.corr()
return corr_matrix.to_string()
@tool
def get_stats(column: str, species: str = None) -> str:
"""Get statistical summary (count, mean, std, min, max) for a specific column and optionally filter by species.
Args:
column: Column name to analyze
species: Species to filter by (optional)
"""
data = df
if species:
data = df[df["Species"] == species]
stats = data[column].describe()
prefix = f"Stats for {column}"
if species:
prefix += f" (Species: {species})"
return f"{prefix}:\n{stats.to_string()}"Now we’ll create the agent using LangGraph. At its core, LangGraph is a state graph: a directed graph where nodes are functions and edges define transitions. This gives you explicit control over the ReAct loop.
from langchain_ollama import ChatOllama
from langgraph.prebuilt import create_react_agent
model = ChatOllama(
model="ministral-3:14b-cloud",
base_url="http://localhost:11434"
)
tools = [
inspect_data,
query_data,
find_correlations,
get_stats
]
agent = create_react_agent(model, tools)/var/folders/j7/9dgqq5g53vnbsbmvh2yqtckr0000gr/T/ipykernel_73620/1378947355.py:16: LangGraphDeprecatedSinceV10: create_react_agent has been moved to `langchain.agents`. Please update your import to `from langchain.agents import create_agent`. Deprecated in LangGraph V1.0 to be removed in V2.0.
agent = create_react_agent(model, tools)The create_react_agent function builds a standard ReAct graph. It defines three nodes: call the LLM, execute tools, and check if done. The recursion_limit parameter sets the maximum iterations.
Now let’s run the agent and watch it autonomously choose which tools to use.
query = "Which fish species has the highest average weight?"
inputs = {"messages": [("user", query)]}
result = agent.invoke(inputs)for message in result["messages"]:
print(message.content)Which fish species has the highest average weight?
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 159 entries, 0 to 158
Data columns (total 7 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 Species 159 non-null object
1 Weight 159 non-null float64
2 Length1 159 non-null float64
3 Length2 159 non-null float64
4 Length3 159 non-null float64
5 Height 159 non-null float64
6 Width 159 non-null float64
dtypes: float64(6), object(1)
memory usage: 8.8+ KB
Species avg_weight
0 Pike 718.705882
The fish species with the highest average weight is **Pike**, with an average weight of approximately **718.7 grams**.The agent executes a ReAct loop. It reads your question, realizes it needs to use SQL to group by species and calculate averages, then LangGraph streams each step. You see the LLM’s reasoning, the tool calls, and the observations in real time.
Let’s try another query that requires multiple steps:
query = "What distinctive physical characteristics stand out to identify Pike?"
inputs = {"messages": [("user", query)]}
result = agent.invoke(inputs)for message in result["messages"]:
print(message.content)What distinctive physical characteristics stand out to identify Pike?
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 159 entries, 0 to 158
Data columns (total 7 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 Species 159 non-null object
1 Weight 159 non-null float64
2 Length1 159 non-null float64
3 Length2 159 non-null float64
4 Length3 159 non-null float64
5 Height 159 non-null float64
6 Width 159 non-null float64
dtypes: float64(6), object(1)
memory usage: 8.8+ KB
Pike, based on the dataset's columns, can be identified using the following **distinctive physical characteristics**:
1. **Length**:
- Pike typically have a **longer body** compared to other fish species. The columns **Length1**, **Length2**, and **Length3** can be used to measure this.
- Pike are known for their **torpedo-shaped bodies**, which are elongated and streamlined.
2. **Weight**:
- Pike are generally **heavier** than many other fish species. The **Weight** column can help distinguish them based on their mass.
3. **Height and Width**:
- Pike have a **slender and tall body**, which can be inferred from the **Height** column.
- Their **Width** is usually narrower compared to their height, contributing to their streamlined appearance.
4. **Species Identification**:
- The **Species** column directly identifies Pike as one of the entries.
### Key Characteristics to Look For:
- **Elongated body** (Length1, Length2, Length3).
- **Moderate to high weight** for their size.
- **Tall and narrow profile** (Height > Width).
Would you like me to retrieve specific statistical data (e.g., average length, weight) for Pike to further highlight these characteristics?This demonstrates the power of the ReAct loop. The agent chains multiple observations together, building a solution step-by-step rather than attempting everything in one shot. Unlike opaque loops, LangGraph exposes every state transition, making debugging straightforward.
Why are we using simpler queries? Real-world agentic systems face reliability challenges. Models sometimes generate malformed JSON. SQL libraries have limitations. Complex queries can hit iteration limits before completing.
Production systems like Claude Code and Cursor handle these issues through better error recovery, more sophisticated prompting, and custom tool implementations. For learning, we focus on simple queries that reliably demonstrate the ReAct pattern.
This is the core architecture of Google Antigravity, Claude Code, and Cursor. Scale it up with better tools like file editing, terminal commands, and web browsing. Add better orchestration with parallel agents and verification artifacts.
The loop remains the same: Reason, Act, Observe, and repeat.
